ARE New Atmospheric Vent Can -- Patented Design

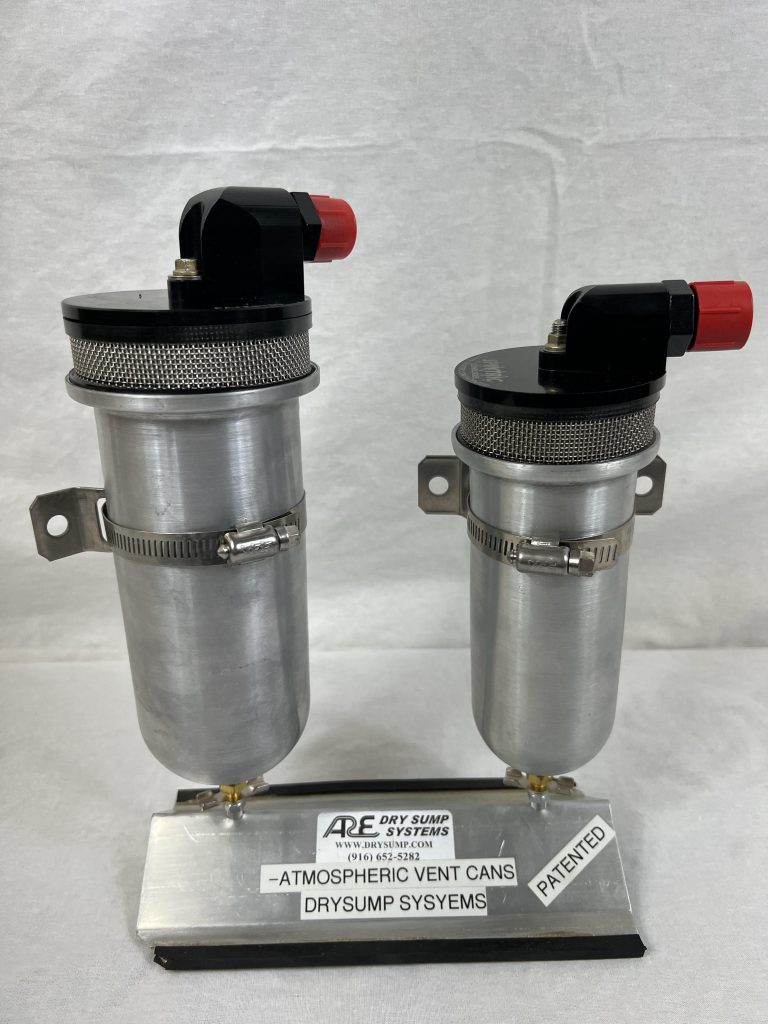

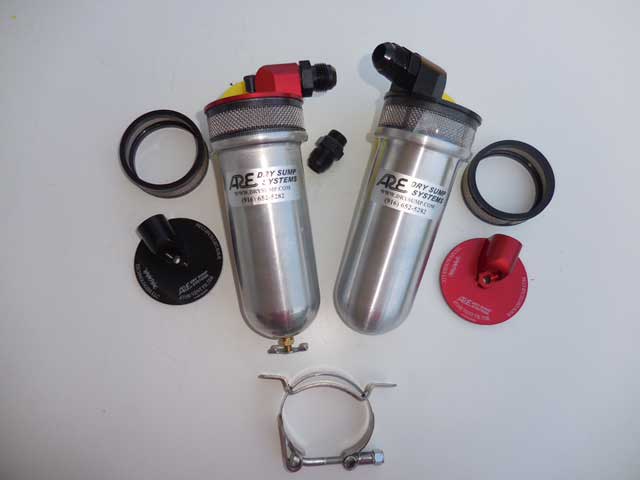

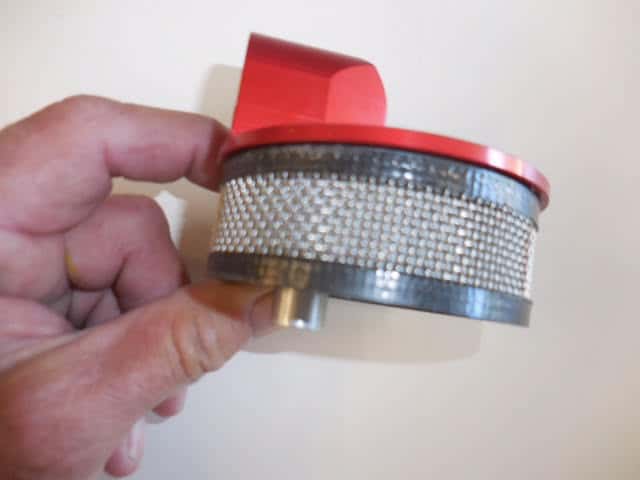

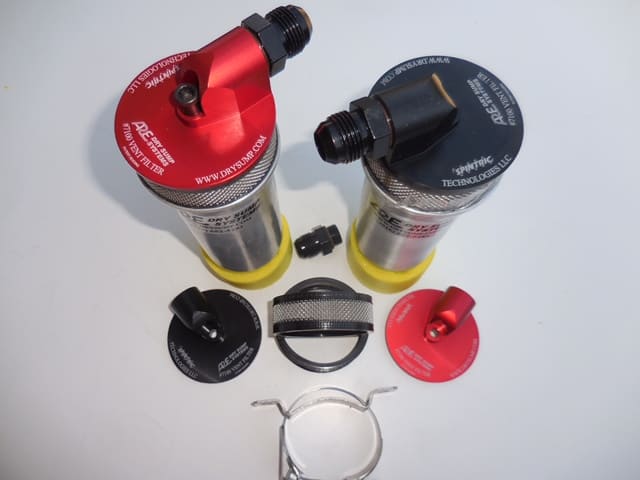

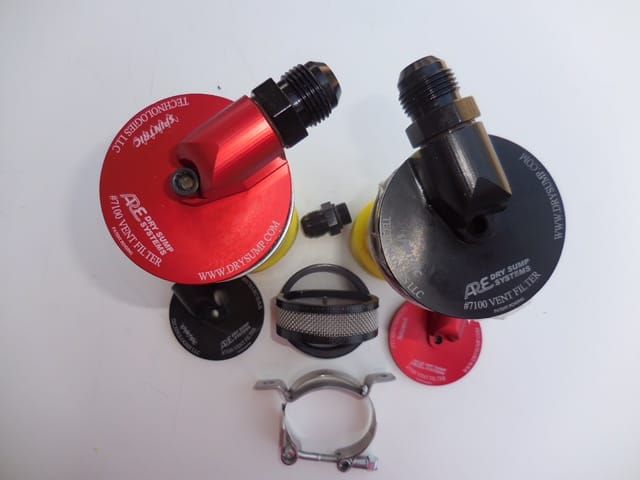

Introducing our NEWEST all unique design “Atmospheric Vent Can” (patent pending). Absolutely the most efficient and compact design which allows the highest mounting point possible by incorporating the dry sump tank vent to atmosphere at the highest point of the canister. This is achieved by connecting the AN fitting at the top with internal passages to below the unique stainless steel 4 micron dual filter. Indexable 360 degrees, made from aerospace 6061 T6 alloy aluminum. Internal baffles and drain at bottom.

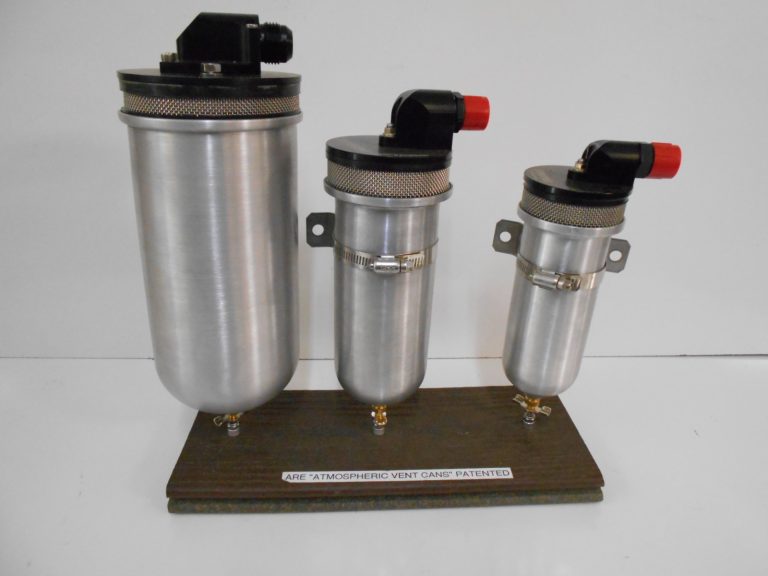

Product Numbers:
Part #7100A — .6 Liter Capacity 8.5″ ht X 3″ diameter
Part #7100A1L — 1 Liter Capacity 10″ ht X 3.5″ Diameter
Part #7100A2L — 2 Liter Capacity 10″ ht X 5″ Diameter
