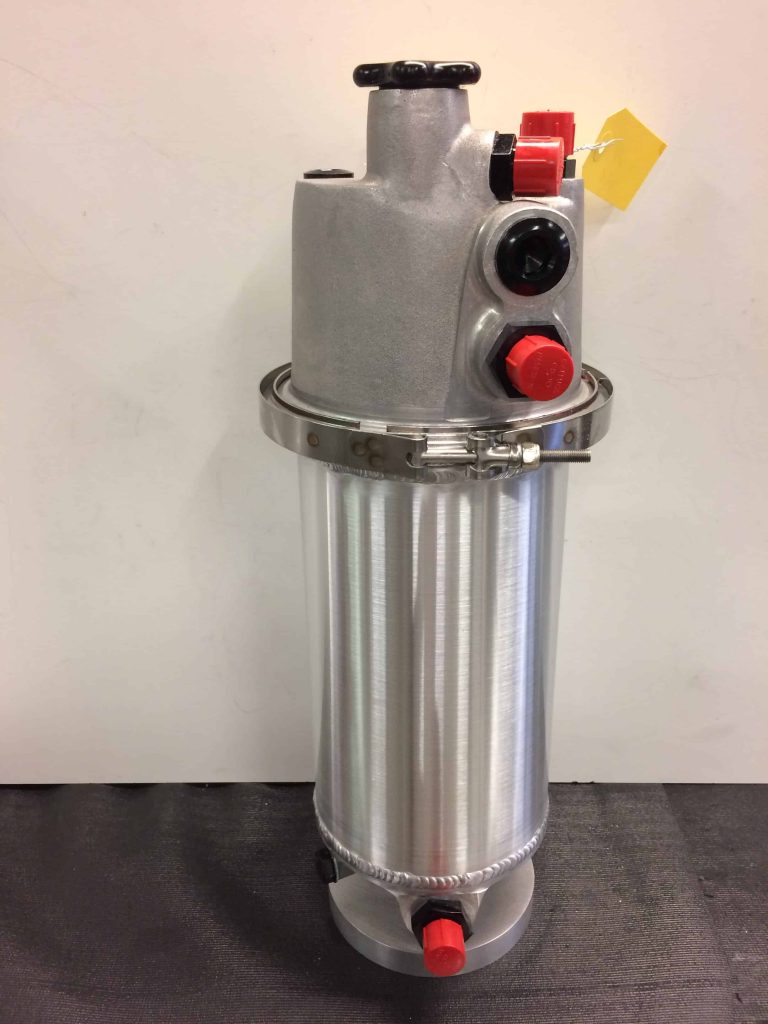

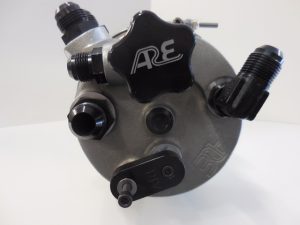

THE ULTIMATE DRY SUMP OIL TANK 4Axis CNC Machined T6 aerospace alloy Aluminum Tank

CNC/Cast Tanks Specifications:

Lightweight A356 Aerospace aluminum castings heat treated to T6, Fully 4 axis CNC machined.

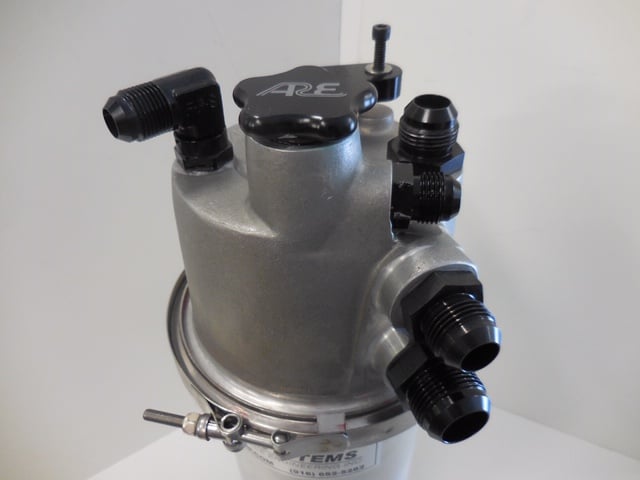

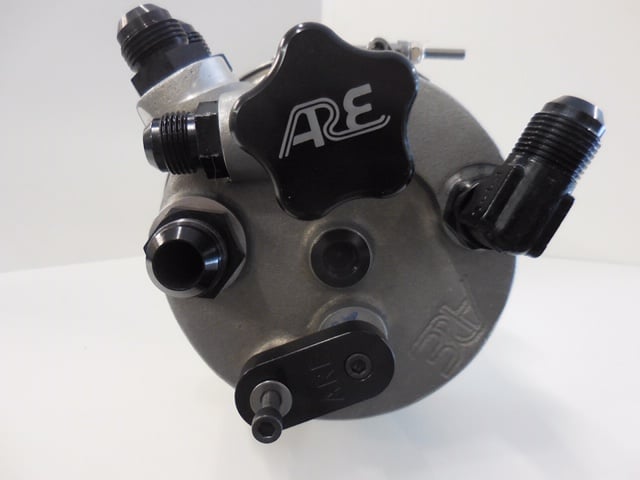

All optional inlet/outlet and venting ports including, heater position, 2 temp ports and a dipstick are incorporated, and O ring Plugged if not needed.

Super efficient and innovative venting and internal baffling system

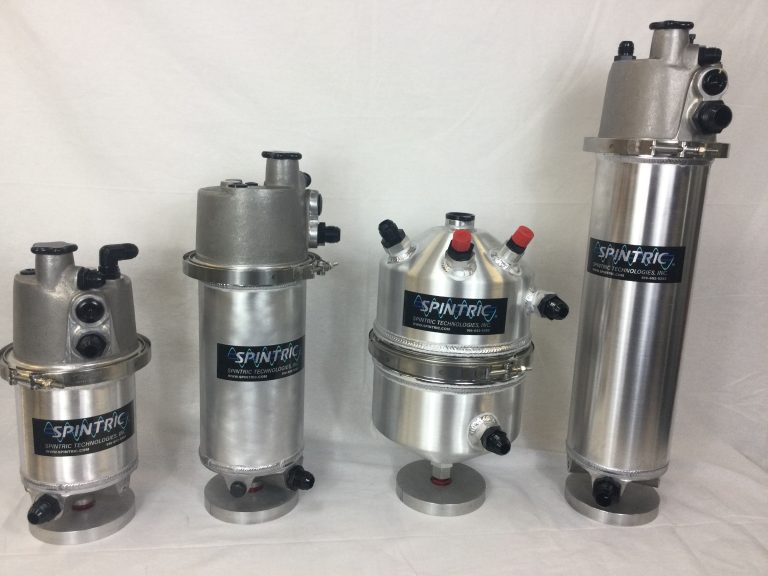

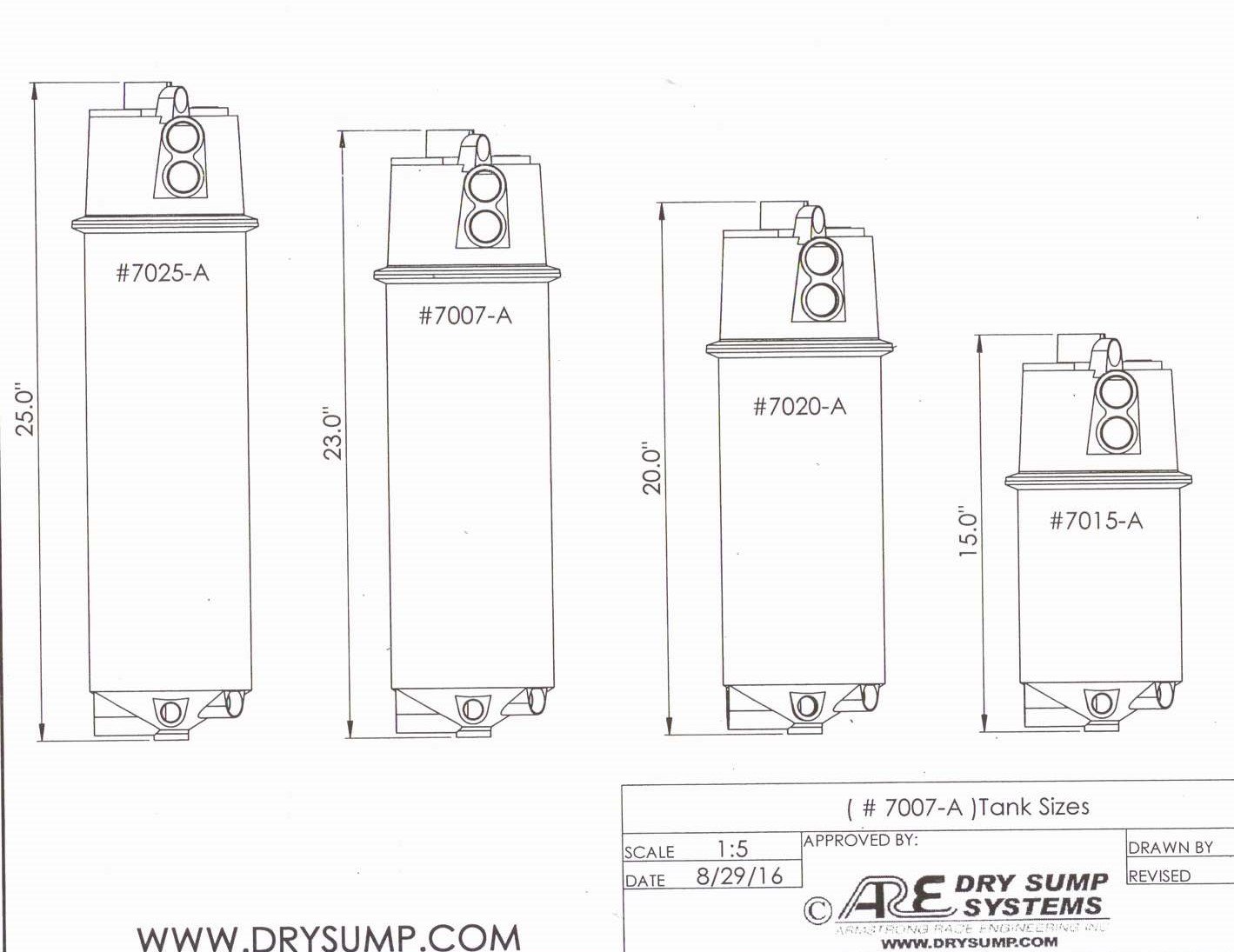

Tank Part Numbers:

#7015A       1.5 Gallon      6″ diameter,    approx 16″ height

#7020A       2.0 Gallon    6″ diameter,    approx 20″ height

#7023A       2.3 Gallon    6″ diameter,    approx 23″ height

#7025A       2.5 Gallon    6″ diameter,    approx 25″ height

#7007A       2.3 Gallon    6″ diameter,    approx 23″ height

the 7007A is made exclusively for Z06 Application, includes a special swivel mount on top

#7820A       2 Gallon    8″ diameter,    approx 16″ height

#7830A       3 Gallon    8” diameter,    approx. 20” height

#7835A       3.5 Gallon  8” diameter,   approx. 23” height

#7842A      4.2 Gallon  8” diameter,   approx. 26” height

#7850A      5 Gallon   8” diameter,    approx. 30” height



#7030          3.0 Gallon   9″ diameter,    approx. 16.5″ height

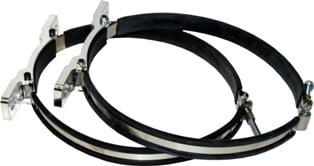

7000 700001

 #7000A

Bracket Kit for 6″  Tank

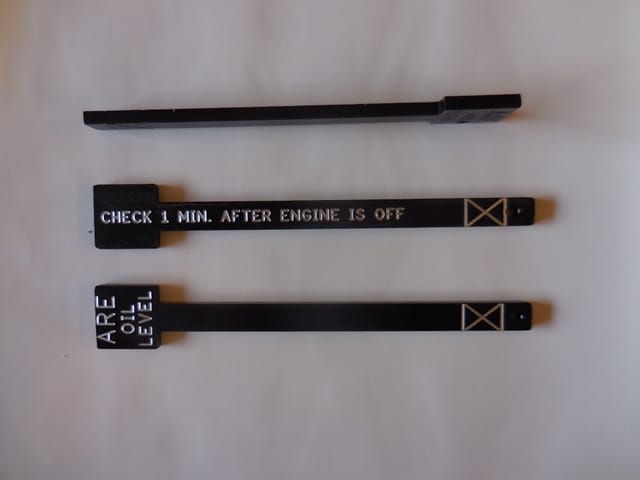

#DIPSTICK
