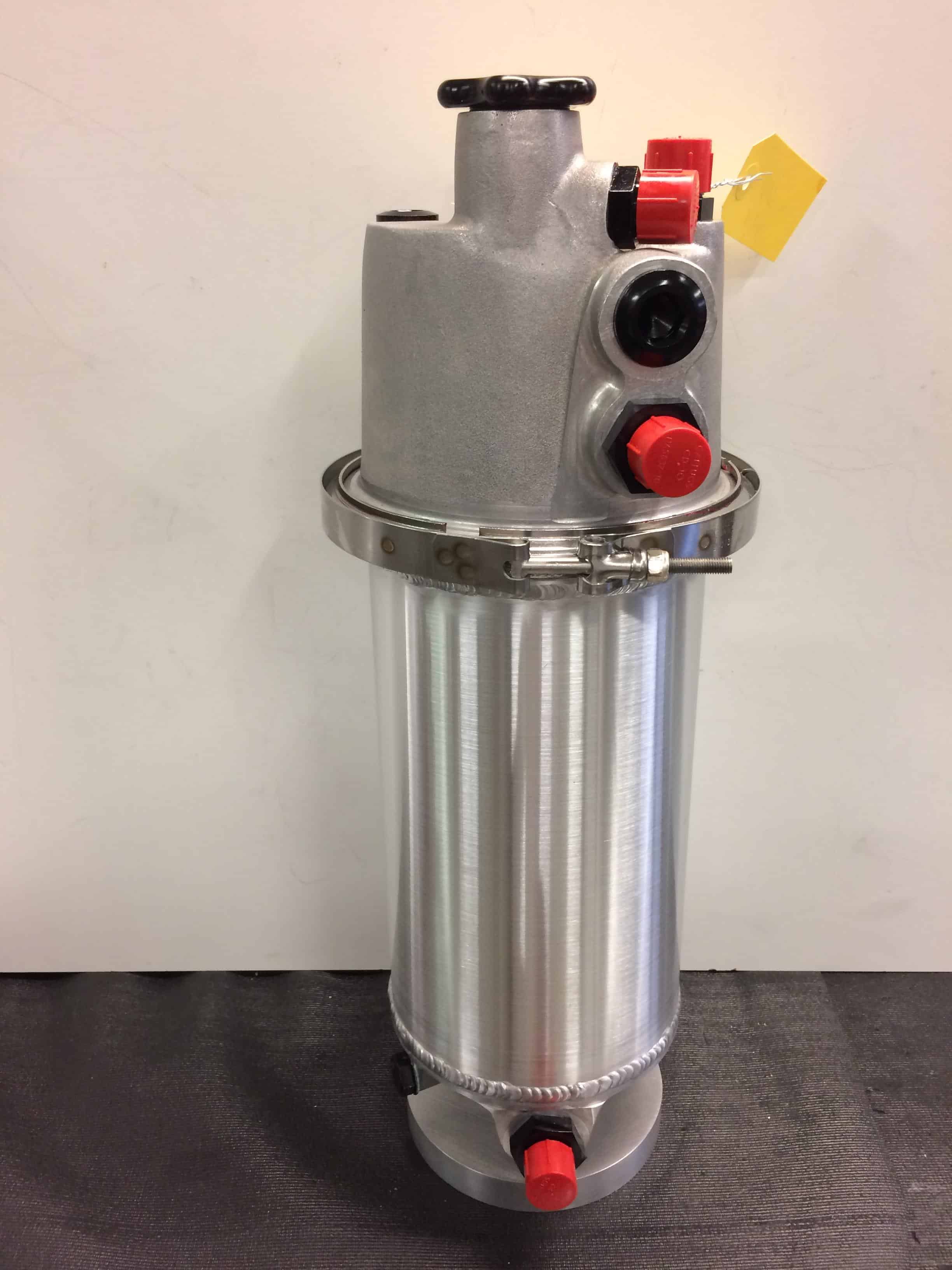

The Ultimate Dry Sump OIL TANK



Lightweight A356 Aerospace aluminum castings heat treated to T6, Fully 4 axis CNC machined.

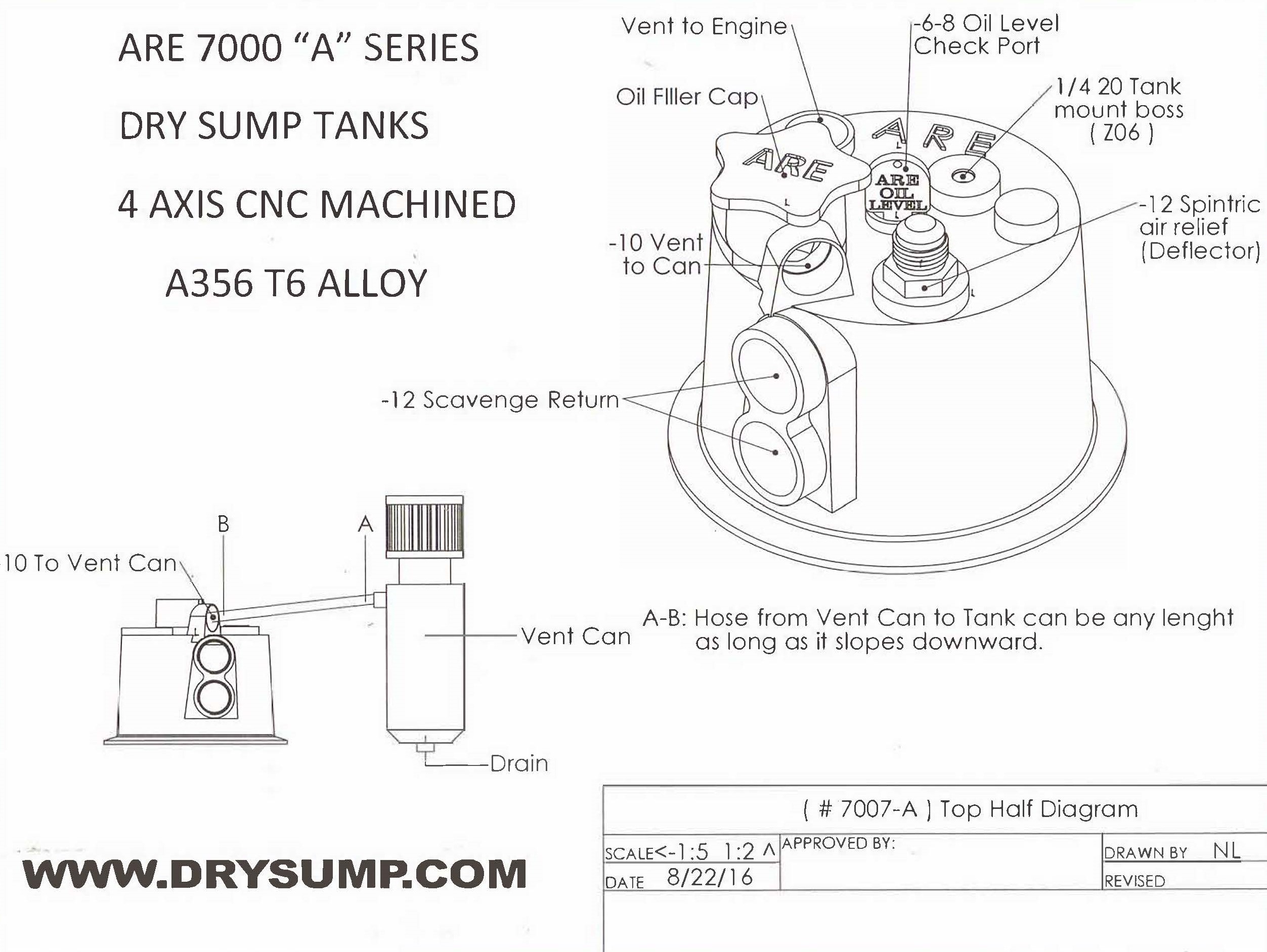

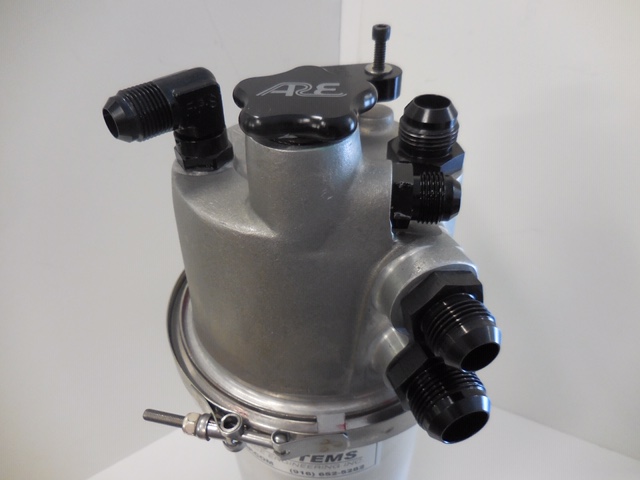

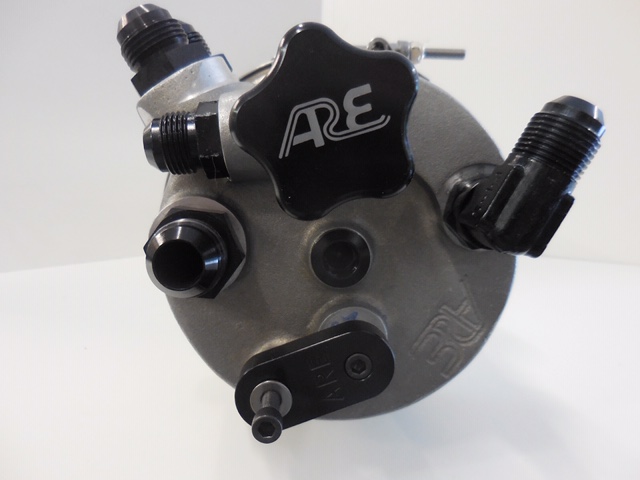

All optional inlet/outlet and venting ports including, heater position, 2 temp ports and a dipstick are incorporated, and O ring Plugged if not needed.

Super efficient and innovative venting and internal baffeling system

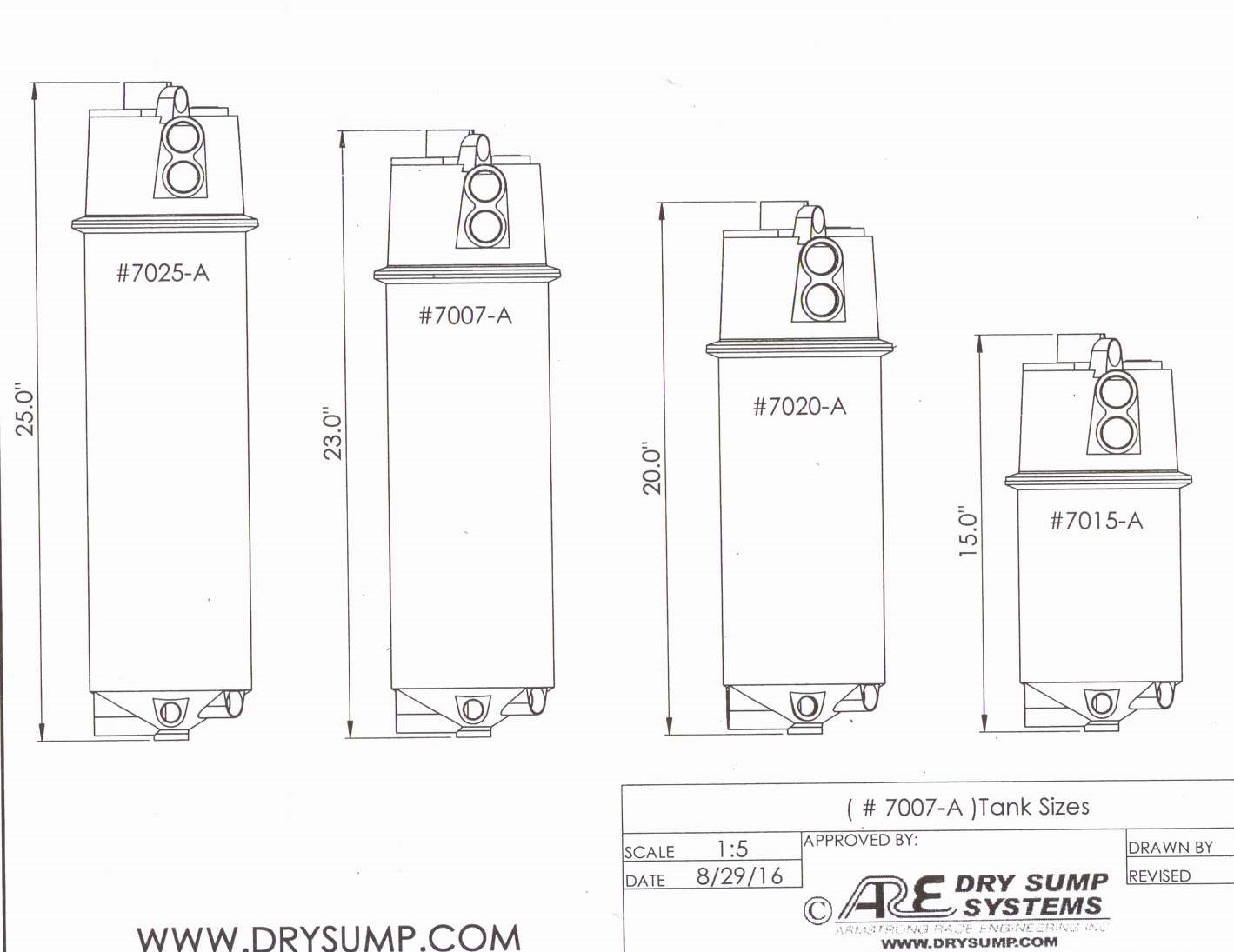

 #7015A       1.5 Gallon   6" diameter, approx 16" height

#7020A       2.0 Gallon   6" diameter, approx 20" height

#7023A       2.3 Gallon   6" diameter, approx 23" height

#7025A       2.5 Gallon   6" diameter, approx 25" height

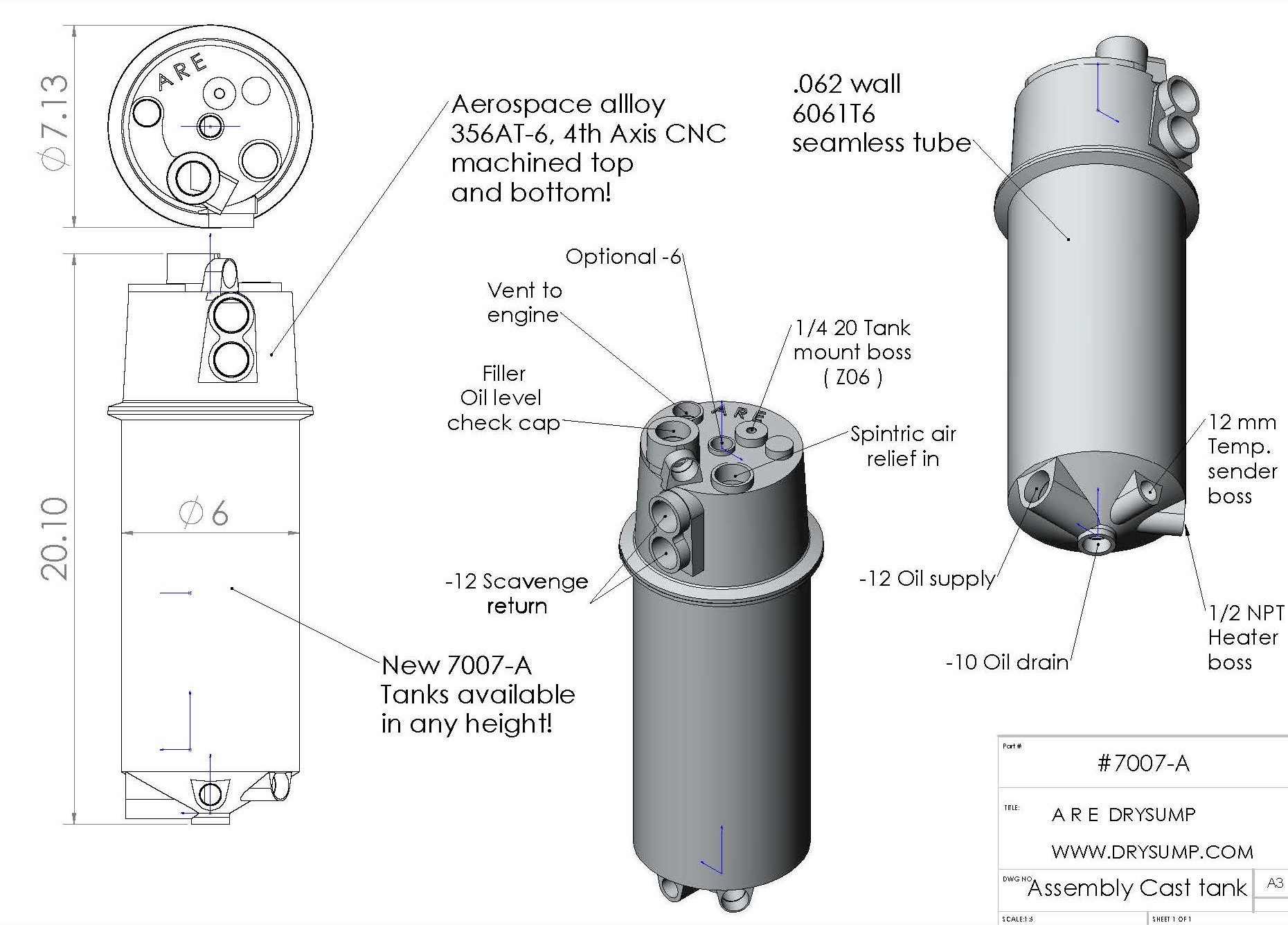

#7007A      2.3 Gallon   6" diameter, approx 23" height

the 7007A is made exclusively for Z06 Application, includes a special swivel mount on





 #7000A

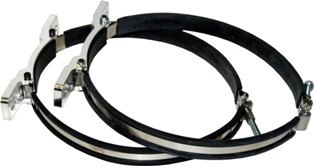

Bracket Kit for 6"  Tank

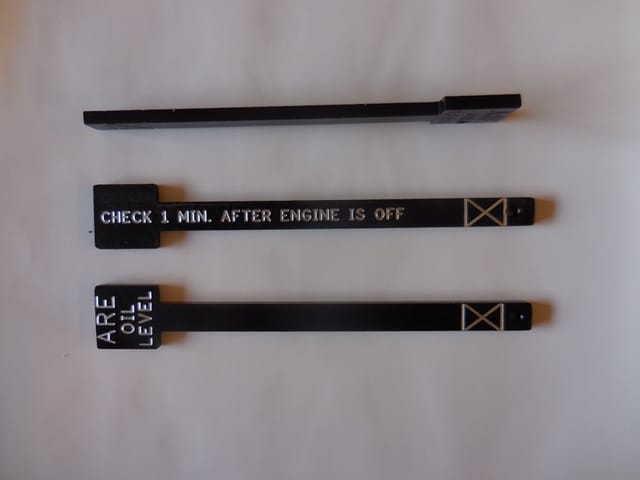

#DIPSTICK
